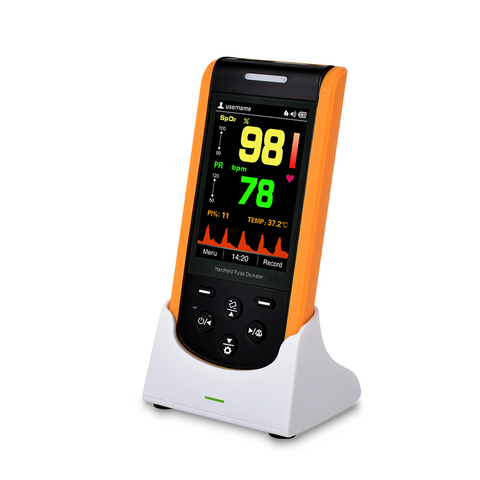

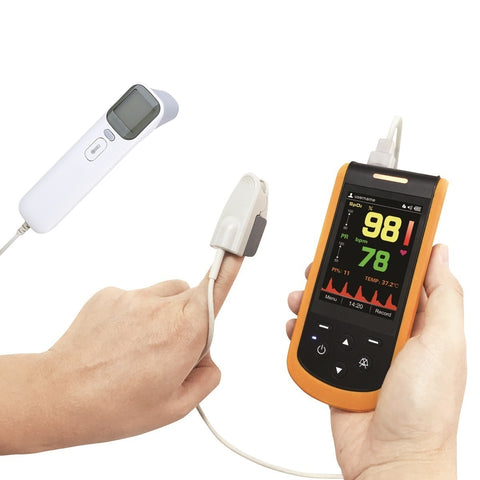

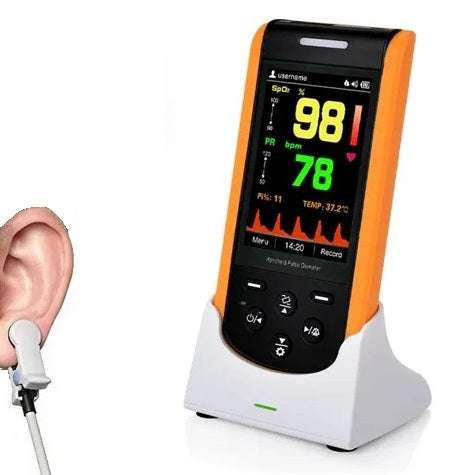

• SP-20 Handheld Pulse Oximeter with Alarms - the perfect choice for either spot-checking or continuous & overnight monitoring in both clinical and homecare situations.

• Rechargeable Lithium Battery with Charger Base & AC Power Adapter

• Approved by the manufacturer for compatibility with Nellcor^® standard (not OxiMax) sensors.

• 3.5-inch High-resolution Colour LCD Display with dual-mode viewing of SpO2 value, Pulse Rate, PI%, plethysmograph & pulse bar

• Wireless Bluetooth connection to FREE Android / IOS iPhone App allows data to be viewed, reported & shared

• Two year manufacturer warranty (on handset)

• Supplied with a reusable Adult "Spot Check" Finger Clip oximetry sensor included as standard

• Optional reusable Paediatric "Spot Check" Finger Clip and Neonatal/Infant Wrap sensors available

• Optional packages also available for longer term/overnight monitoring include 10 disposable sensors plus an oximetry extension cable (to provide additional flexibility when positioning the oximeter at the bedside)

Includes

• 1. x Built-in Lithium Battery

• 1. x Charger Base/Desk Stand with USB/micro USB cable

• 1. x AC Mains Power Supply Adapter with UK pins

• 1. x Operation Manual

• 1. x Protective Orange Rubber Cover with Flip-out Stand

• 1. x 15040091 Adult Finger Sensor

PLUS:

option to buy a reusable Paediatric Finger Clip sensor and/or reusable Neonatal Wrap sensor for spot checks or short term monitoring

PLUS:

option to buy an oximetry extension cable and a pack of 10 disposable sensors in a choice of four sizes (Neonate, Infant, Paediatric or Adult) for longer term monitoring

WHAT THE MANUFACTURER SAYS...

The SP-20 benefits from Lepu Medical's MoveOxy® SpO2 Technology:

• Accurate monitoring against low perfusion
• Reliable monitoring against motion interference
• Sensitive monitoring against weak pulse signal

As well as Lepu's own range of oximetry sensors, the SP-20 has been tested and approved by the manufacturer for compatibility with Nellcor^® standard (not OxiMax) sensors.

Technical Specifications:
SpO2
Technique: Dual-wavelength LED
Display range: 0%~100%
Measuring accuracy: ±2% (range from 70% to 100%)
Resolution: 1%

Pulse Rate
Measuring range: 30~250bpm
Measuring accuracy: ± 2bpm or ±2%
Resolution: 1bpm

Perfusion Index
PI display range: 0.2%~20%

Measuring Mode
Continuous or Spot check

Data Storage
Up to 500 hours
PC software and/or free Vi-Health App for data management
Data Upload via USB cable or wireless

Display
3.5” colour TFT display with rotation

Power Supply
2000mAh lithium battery lasts for up to 18 hours

Charging
Charging stand or USB cable

Dimensions
158mm x 73mm x 25mm

Net Weight
230g

Operating Environment
Operating Temperature: 5℃~40℃
Operating Humidity: 15%-93%

Warranty
Two years on Pulse Oximeter handset

GTIN: tba

WHAT WE SAY...

PULMOLINK'S "TOP TEN" REASONS TO CHOOSE THE SP-20:-

• It's large easy-to-read colour display adjusts automatically for vertical or horizontal use and can be set to auto-dim for night-time use or to prolong battery life if required

• The alarm limits for low SATs and high/low Pulse Rate are user adjustable and they remain where you've set them between uses

• Clearly different audible alert tones for exceeding alarm limits versus check probe warnings

• Hi-VIZ Red Alarm / Amber Alert Warning Beacon

• Compatible with the wide range of reusable and disposable Nellcor-compatible sensors featured on our website (please contact us for advice on which would suit your needs best)

• Multiple power options - Mains Adapter to Charger Base, USB to micro USB Cable or internal battery powered (up to 18 hours) - the SP-20 oximeter can be placed in the charger dock and the unit will charge while being used at the same time

• Easy-to-use, key-pad operation with intuitive pictorial menu structure and help screen featuring on-screen sensor positioning diagrams

• Useful "Trend Record" and "Spot-Check Record" feature recalls stored readings to the oximeter screen with date & time stamps

• FREE ViHealth APP (requires Apple or Android smartphone - not included) allows real-time visualisation of oximetry readings, as well as storing oximetry measurements for subsequent review

• FREE "Oximeter Data Manager" PC Software is available to download from the manufacturer's website for Sleep Study Analysis & Reporting
